Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

DONGGUAN MAUFUNG MACHINERY CO.,LTD
Contact Now
    Buy cheap Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A from wholesalers

    Buy cheap Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A from wholesalers
    • Buy cheap Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A from wholesalers

    Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

    Ask Lasest Price
    Brand Name : MAUFUNG
    Model Number : MF-FAC390A
    Certification : CE
    Price : EUR/USD/CNY
    Payment Terms : T/T
    Supply Ability : 100 SETS/ MONTH
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

    Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A


    Description:

    Model MF-FAC390A Auto Casing In and Hydraulic Nipping machine is based on model MF-FAC390. Its speed is faster than MF-FAC390 as model MF-FAC390A has two stations of joint forming unit. It is widely used for photo books, picture books, hard cover books and various notebooks.


    Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

    Parameters:

    ModelMF-FAC390A
    Power Supply380V, 50HZ
    Mainframe Power9kw
    Block Thickness4-60mm
    Block Size (Max)390*297mm
    Block Size (Min)100*100mm
    On-line speed600pcs
    Machine Dimensions(L×W×H)4950*2650* 2000mm
    Machine Weight2000kg

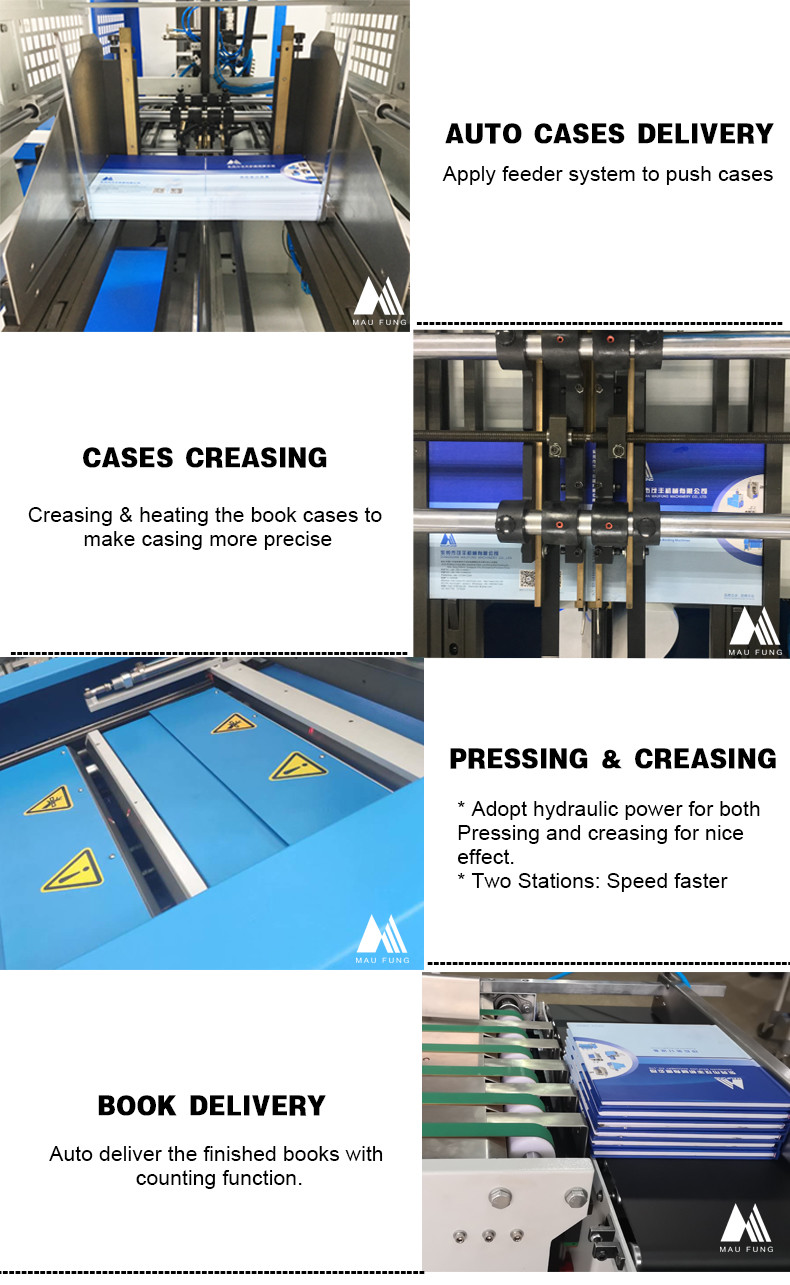

    Features:

    Automatic Casing In and Hydraulic Nipping Machine for hard cover photo books binding MF-FAC390A

    • Adopt feeder for automatically devering cases
    • Add cases creasing and heating function for a better effect
    • Automatically put on glue.
    • Automatically insert the block to case, with alignment and pressing device to ensure a precise insertion.
    • Automatically press and crease the book, with pressing times and creasing times alternative.
    • Use hydraulic power for joint forming.
    • Automatically deliver the finished products.
    • Automatically counts the production.
    • Use PLC controlling systems and touch screen operating system;
